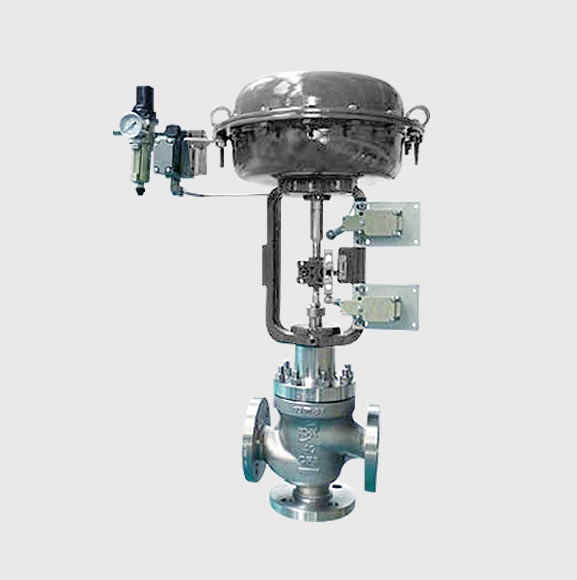

The three-way valve has three inlets and outlets connected to the pipeline, which is equivalent to two single-seat valves combined into one. It is suitable for dividing a fluid into two outflows through the three-way valve. The diverter type three-way valve divides one fluid into two fluids, and the converging type three-way valve mixes two fluids into one fluid.
| model | G301 / G302 / G303 |
| Nominal diameter | 1″~18″ (25A~450A) |
| Nominal pressure | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Medium temperature | -196℃~538℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM, RTJ) |
| Valve core shape | Fluid pressure balanced valve core |
| Flow characteristics | •Equal percentage•Linear |
| Valve body material | WCB, LCB, WC6, WC9, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅳ, Ⅴ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Pneumatic diaphragm actuator • Pneumatic piston actuator • Fully electronic actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
