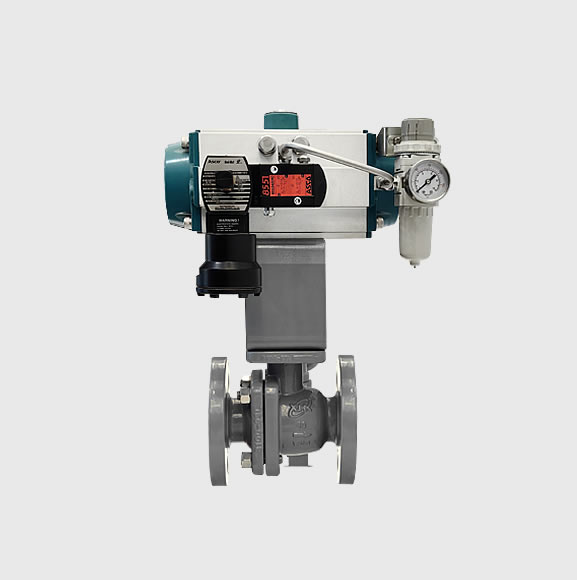

The ball valve has excellent cutting performance. When fully opened, the inner diameter of the flow path and the pipeline is basically the same, and the fluid pressure loss is extremely small. Therefore, it is most suitable for the cutting control of various liquids, gases, slurries and other fluids.
| model | B101 / B102 / B104 |
| Nominal diameter | 3/4＂~12＂(20A~300A) |
| Nominal pressure | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Medium temperature | -196℃~538℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM, RTJ) • Welding type (BW) |
| Valve body material | WCB, LCB, WC6, WC9, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅴ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
