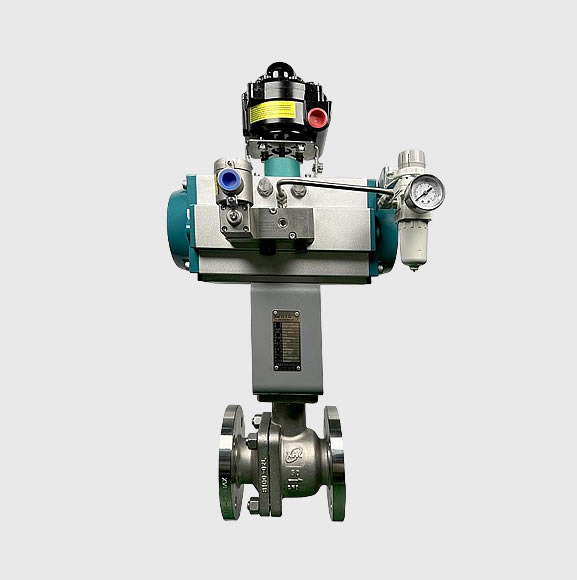

This series of metal-sealed ball valves are suitable for rapid cut-off control of various fluids with high temperature, high pressure, corrosion resistance and impurities such as solid particles, slurry, fiber, etc. due to its unique design structure and special hardening treatment of the ball and sealing ring. The ball valve has flexible action, small opening and closing torque, excellent sealing performance and long service life. It is widely used in various industries such as petroleum, petrochemical, chemical, power station, metallurgy, etc.
| model | B101 / B102 / B104 |
| Nominal diameter | 3/4＂~12＂(20A~300A) |
| Nominal pressure | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Medium temperature | -196℃~538℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM, RTJ) • Welding type (BW) |
| Valve body material | WCB, LCB, WC6, WC9, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅴ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
