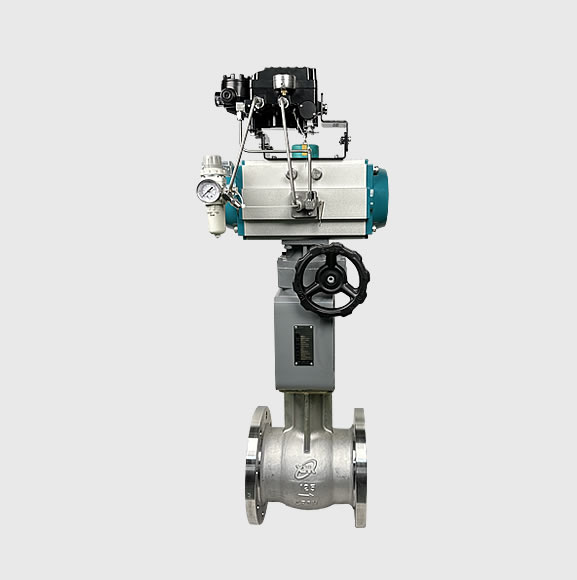

The specially designed V-shaped cut on the spherical surface not only has a large adjustable ratio, but also ensures a good adjustable ratio. During the operation of the valve core, the V-shaped cut on the spherical surface and the valve seat can form an effective shearing effect, and the straight-through flow channel structure is very suitable for the control of fiber media, slurry, powder and other fluids.
| model | B201 / B202 / B211 / B212 |
| Nominal diameter | 1″~12″ (25A~300A) |
| Nominal pressure | ANSI Class 150~300#; PN1.6MPa~PN4.0MPa (PN5.0MPa) |
| Medium temperature | -196℃~538℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM) |
| Valve body material | WCB, LCB, WC6, WC9, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅴ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
