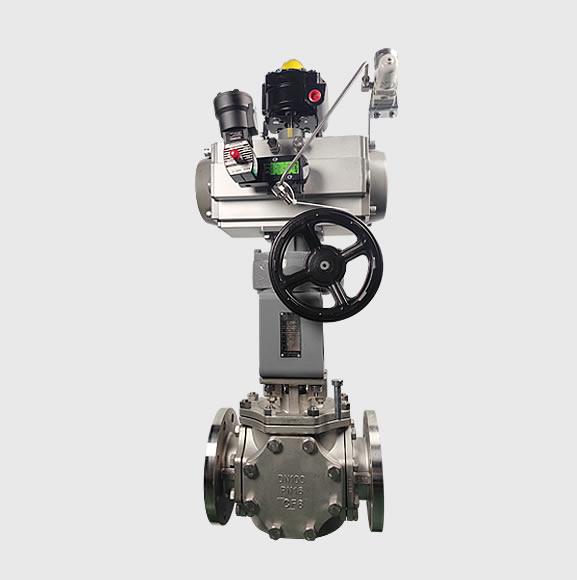

The three-way ball valve has strong cutting performance. When fully opened, its flow path and pipeline are basically the same, and the fluid pressure loss is very small. It is more suitable for the cutting control of various liquids, gases, and slurry fluids.
| model | B301 / B302 / B303 / B304 |
| Nominal diameter | 1″~10″ (25A~250A) |
| Nominal pressure | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Medium temperature | -29℃~250℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM) |
| Valve body material | WCB, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Soft seal: ANSI Class VI |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
