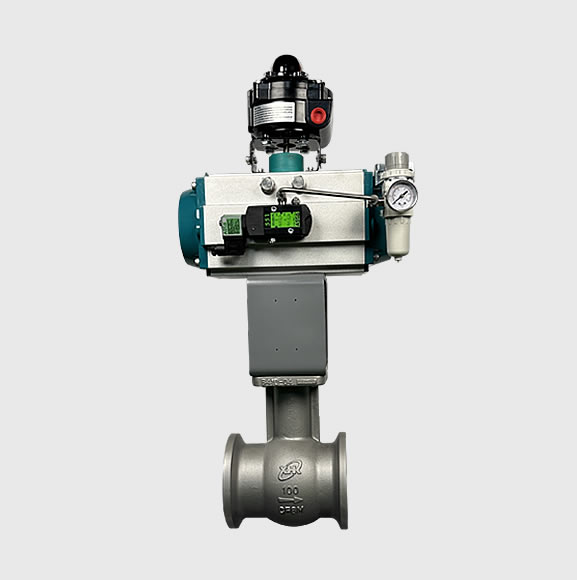

The eccentric ball control valve is an eccentric angle stroke control valve with a valve plate that is a partial sphere. Compared with the ball control valve, it has the characteristics of compact structure, light weight, large adjustable ratio and strong flow capacity.
| model | B401 / B402 / B411 / B412 |
| Nominal diameter | 1″~12″ (25A~300A) |
| Nominal pressure | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Medium temperature | -45℃~400℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF) • Wafer type |
| Valve body material | WCB, LCB, WC6, WC9, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅳ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
