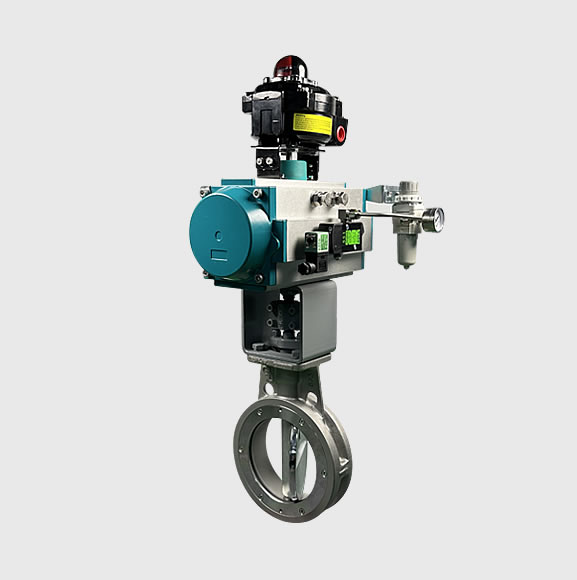

The triple eccentric high performance butterfly valve adopts a unique triple eccentric structure design, has excellent regulating and cutting performance, and is suitable for regulating valves in various occasions.
| model | E301/E302/E303/E304/E311/E312/E313/E314 |
| Nominal diameter | 3″~24″ (80A~600A) |
| Nominal pressure | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Medium temperature | -196℃~500℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF) • Wafer type |
| Valve body material | WCB, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅳ, Ⅴ •Soft seal: ANSI Class Ⅵ |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
