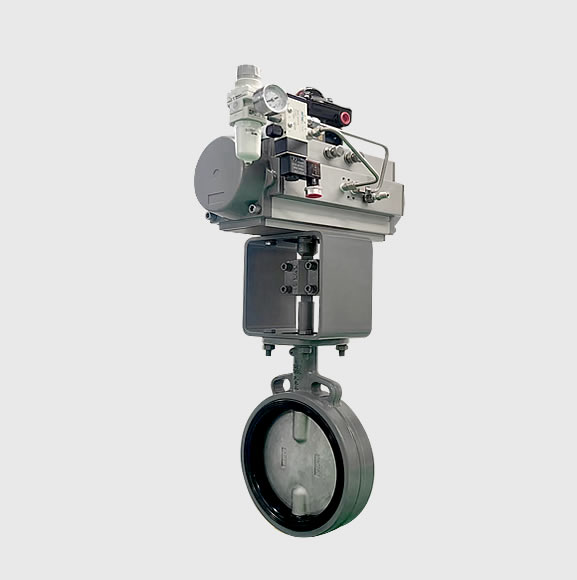

Corrosion-resistant butterfly valves are widely used in fluid cut-off control in chemical, pharmaceutical, food, papermaking, water treatment and other industries.
| model | E401 / E411 |
| Nominal diameter | 2″~24″ (50A~600A) |
| Nominal pressure | ANSI Class 150#; PN1.0MPa PN1.6MPa |
| Medium temperature | -50℃~150℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Wafer type |
| Valve body material | HT200, QT400, WCB and other alloy steels |
| Leakage | •Soft seal: ANSI Class VI |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
