Baisteels

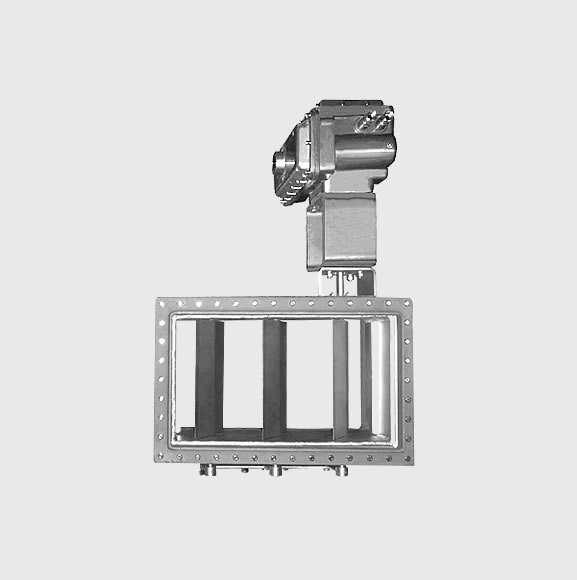

This valve is welded with high-quality alloy steel and has the advantages of small size, light weight, wear resistance, long service life, small flow resistance, large flow cross-section, and flexible opening and closing. This valve is widely used in pipelines in metallurgy, building materials, petrochemical, light industry and other industries to open and close, automatically adjust or remotely control the flow of media such as gas, semi-fluid, dust-containing gas, etc.
| model | E601 |
| Nominal diameter | Special design |
| Nominal pressure | ANSI Class 150#; PN0.25MPa PN0.6MPa |
| Medium temperature | -5℃~450℃ |
| Flange distance | Refer to the selection sample |
| Connection | Flange type (RF, FF) |
| Valve body material | Q235A 304 316 and other alloy steels |
| Leakage | 1.0%~2.0% |
| Actuator | • Cylinder actuator • Electric actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
