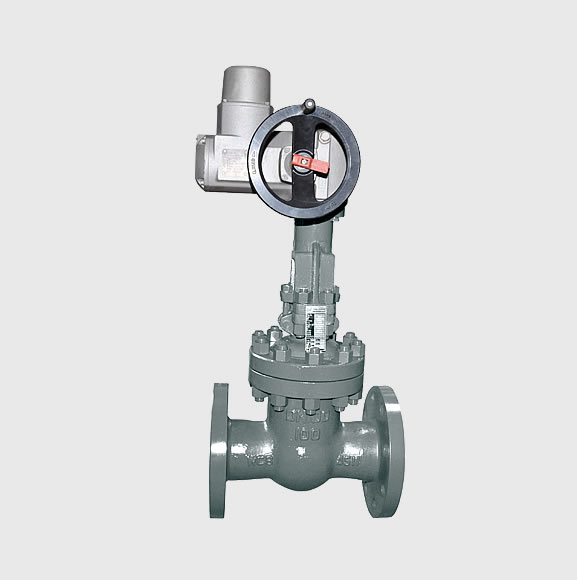

Widely used in emergency shut-off valves and vent valves under high temperature, high pressure and extremely low temperature conditions. It adopts a unique metal contact structure, with reliable action and extremely high shut-off performance.
| model | G601 / G602 / G603 |
| Nominal diameter | 3″~24″ (80A~600A) |
| Nominal pressure | ANSI Class 150-600#; PN1.6MPa~PN10.0MPa |
| Medium temperature | -196℃~538℃ |
| Flange distance | Refer to the selection sample |
| Connection | • Flange type (RF, FM) |
| Valve core shape | •Parallel•Wedge |
| Flow characteristics | • Approximately linear |
| Valve body material | WCB, CF8, CF8M, CF3M and other alloy steels |
| Leakage | •Hard seal: ANSI Class Ⅳ, Ⅴ |
| Actuator | •Pneumatic piston actuator •Fully electronic actuator |
| Surface coating | Dark green epoxy resin When the valve body is made of stainless steel, the body is not coated |
