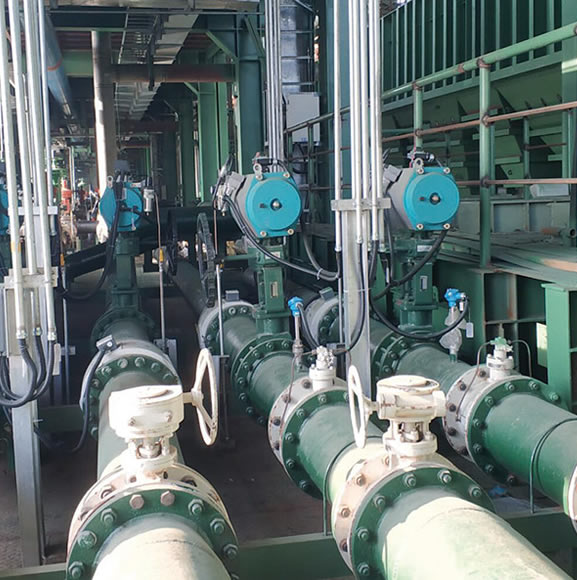

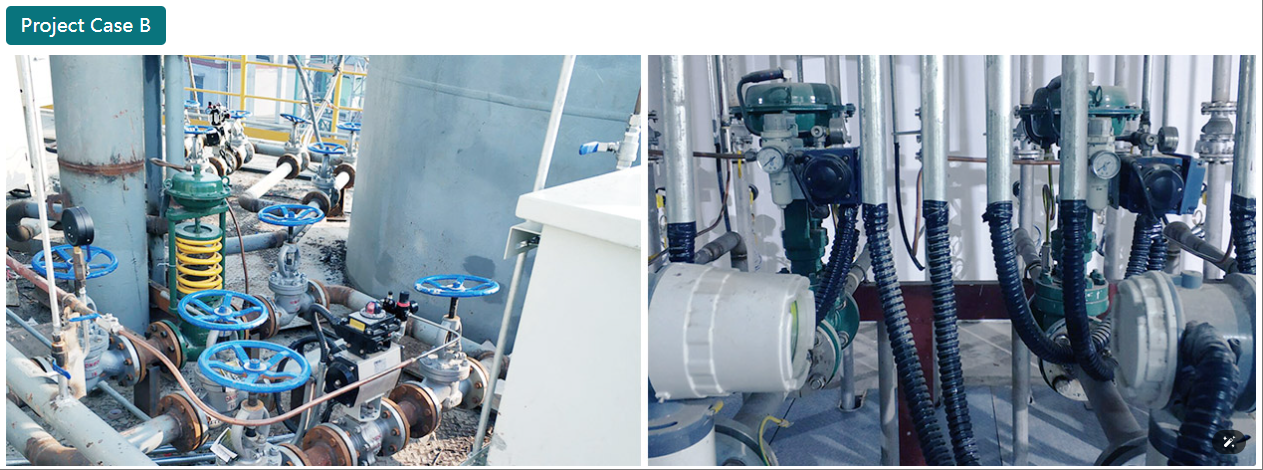

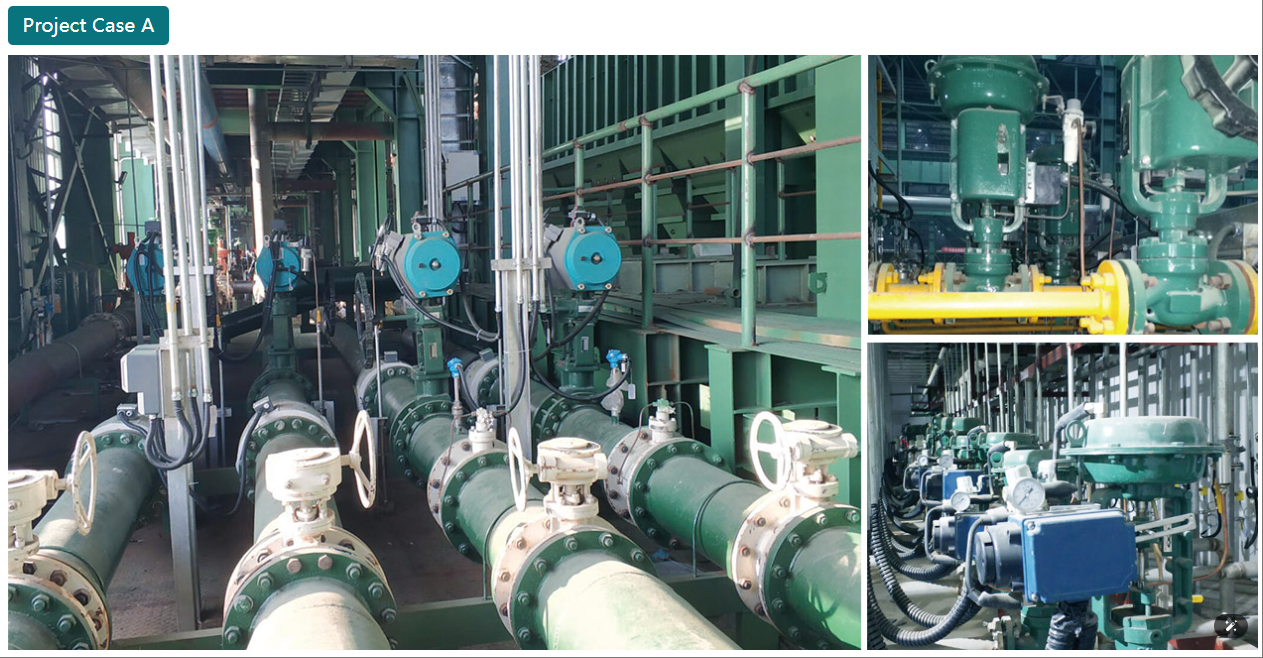

Project Cases

7SETUP has won the trust of many customers and is committed to making due contributions to solving fluid control solutions for customers……

Introduction to Control Valves
Control valves are core components in industrial automation systems, precisely regulating fluid flow, pressure, and temperature via PLC/DCS signals. Key advantages include:

1. Precision Control: Smart positioners (±0.5% accuracy) with PID algorithm integration;
2. Rapid Response: Pneumatic actuators (<1s action time), electric models with Modbus communication;
3. Corrosion Resistance: Materials like 316L stainless steel and Hastelloy for harsh media (pH 0-14);
4. Multi-Actuation: Pneumatic (0.4-0.7MPa), electric (24VDC/220VAC), or hydraulic drives;
5. Optimized Design: V-port ball valves (particle handling), triple-offset butterfly valves (zero leakage), and cage-style valves (noise reduction).

Industry Applications

1. Chemical Industry
   • Use Cases: Reactor pressure control (control valves), chlorine pipeline isolation (pneumatic ball valves);
   • Example: High-temperature valves (550°C/PN420) in PTA production.
2. Power Generation
   • Use Cases: Boiler feedwater regulation (cage valves), steam turbine bypass (angle valves);
   • Example: Multi-stage pressure-reducing valves for supercritical units (>30MPa differential).
3. Water Treatment
   • Use Cases: Aeration control (butterfly valves), RO system balancing (diaphragm valves);
   • Example: Titanium ball valves in desalination plants (chloride resistance).
4. New Energy
   • Use Cases: Hydrogen system safety shutoff (fire-safe valves), electrolyte dosing (micro-control valves);
   • Example: Ultra-clean valves with EPDM seals in polysilicon production.
