Product Highlights:

720 × 540 pixels, clearly displaying the details of the tested object

20Hz frame rate (can reach ≥ 100Hz when using local images)

Using infrared shortwave response wavelength, temperature measurement range: 400 ℃~1900 ℃ (segmented),

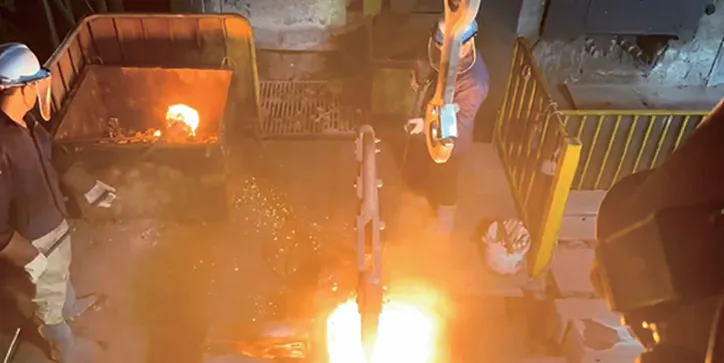

Accurate measurement of temperature during metal smelting and manufacturing processes

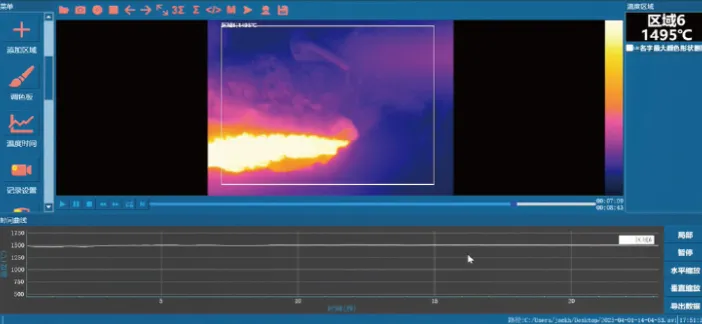

Professional temperature analysis software, providing secondary development SDK

Temperature measurement range: 950 ℃~1900 ℃

Resolution: 720 × 540

Spectral response: 0.5 μ m

Frame rate: 720 × 540@30Hz （USB3.0）/ 720× 540@20Hz (Gigabit Ethernet)

Detector: 4.968mm × 3.726mm

Optical Field of View (HFOV * VFOV): 2.3 °× 1.8 ° (f=75mm)/18 °× 13 ° (f=16mm)/23 °× 17 ° (f=12.5mm)/45 °× 34 ° (f=6mm)

Pixel Field of View (IFOV): 1.15mrad (45 °)/0.552mrad (23 °)/0.431mrad (18 °)/0.092mrad (2.3 °)

Focusing range: 100mm to ∞ (75mm lens 1100mm to ∞)

Temperature measurement accuracy: ± 1% reading value

Communication interface: USB 3.0 or Gigabit Ethernet

Power supply: USB 3.0 (5 VDC) or PoE power supply

Power: USB 3.0 (< 2.7W@5V ）Gigabit Ethernet< 3.75W@PoE ）

Working temperature: 0 ℃~+45 ℃

Storage temperature: -20 ℃~+70 ℃

Working humidity: 10%~80%, no condensation

Protection level: IP65 (NEMA-4)

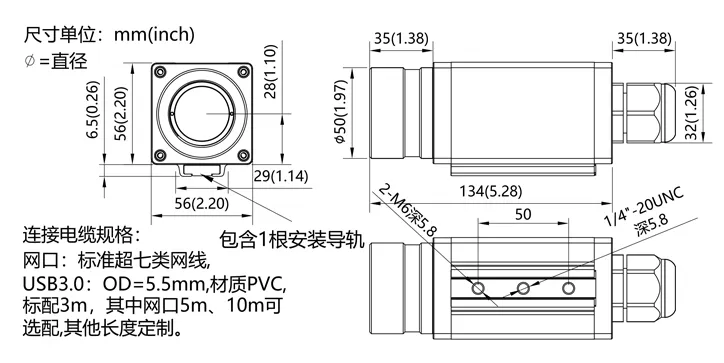

Dimensions (LWH): 134mm × 56mm × 62.5mm

Weight: 504g

Attachment (optional): Air cooled blower, BGIS80-B

Software: Temperature analysis software
