BG-LRF Laser Range Finder
The laser stadiometer is specifically designed for distance measurement of harsh field artifacts in the work industry. The main characteristics are as follows:
maintain high measurement precision and reliability under harsh industrial use environments;
measurement range 10 m, 30 m, 100 m (the company has additional multiple different measurements for different occasions of use);
maintain high measurement precision and reliability under harsh industrial use environments;
measurement range 10 m, 30 m, 100 m (the company has additional multiple different measurements for different occasions of use);
If you need this product, click to consult!
Product Details
Product Details
Description

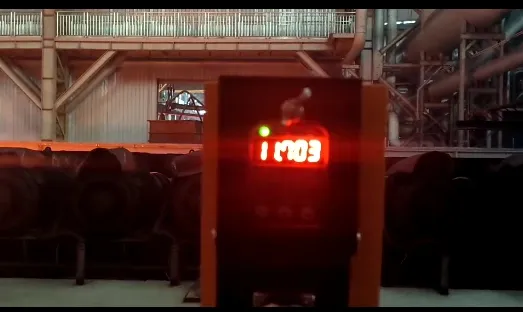

Applications and characteristics:
The laser stadiometer is specifically designed for distance measurement of harsh field artifacts in the work industry. The main characteristics are as follows:
maintain high measurement precision and reliability under harsh industrial use environments;
measurement range 10 m, 30 m, 100 m (the company has additional multiple different measurements for different occasions of use);
use of a visible red laser beam that is easy to target the subject;
rich output interfaces, multiple switching volumes, an-alog volumes, and digital communication interfaces optional for access to various control systems;
convenient key operation sets various parameters;
flexible and scalable connecting cable to facilitate on-site connections;
normalized form | enhancement mode | ||
Relationship between the range of measurement and the reflectivity of the target surface
Black (6% reflectance) Natural Gray (13%) White matte (80%) special reflector | The specific maximum measurement range is 0.05-100 meters, subject to the order distance. The measurement range is influenced by target reflectivity, stray light, and environmental conditions.
0.05-10m 0.05-15m 0.05-60m 10-100m | The specific maximum measurement range is 0.05-150 meters, subject to the order distance. The measurement range is influenced by target reflectivity, stray light, and environmental conditions. 0.05-30m 0.05-35m 0.05-100m 20-150m | |
maximum target temperature | 1100 ℃ | 1300 ℃ | |
certainty of measurement | ±1 mm typical value; | ||
highest resolution | 0.1mm | ||
peak laser wavelength | Red light at 655nm | Red light at 650nm | |
laser peak power | <1mW | ≤5mW | |
laser radiation level | Class 2 | Class 3R | |
laser point | Oval, approximately 10x6mm at 25m | 0.6 mrad, approximately 15mm at 25m | |
auxiliary targeting laser | Green light at 532nm (available for measurement distances exceeding 60 meters) | not have | |
service voltage | DC24V DC ±20%, power ≤10W; | ||
response time | 100ms typical value | ||
switching value | Output mode | You can select upper limit action, lower limit action, or area action | |
push-pull level | High voltage ≥22V, low voltage ≤2V, maximum current capacity 100mA, with short-circuit protection | ||
electric relay | Maximum contact capacity: AC 250V,10A; DC 30V,10A; | ||
analog output | 4-20mA, 0-24mA, 0-20mA, or 4-24mA available | ||
digital communication | RS485, RS232, Profibus-DP, and Profinet are optional | ||
working temperature | -10℃ to 50℃, water-cooled and air-cooled: -10℃ to 110℃ | ||
cooling water | Water temperature approximately 25°C, pressure 1 to 2 bar, flow rate 1 to 2 L/min | ||
purging air | 50 to 200 g/cm², 4 to 16 l/min | ||
protective pole | IP54 | ||

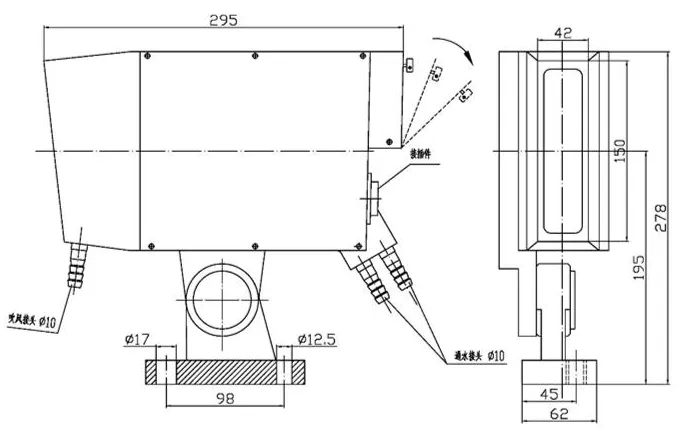

Technical parameters:
Measurement range: 0.2… 100 m (refer to white paper 500 x 500 mm, 90% reflection);
The measurement range is related to the target reflectivity, stray light, and environmental conditions;
The use of special reflectors can reach up to 150m;
Measurement accuracy: ± 3mm, with an accuracy of ± 2mm within a measurement range of 30 meters
Application scope: 0.2…150 m；
Laser wavelength: 650nm for red light;
Laser divergence angle: 0.6mrad;
Laser protection level: Class 2
Supply voltage: DC24V DC ± 20%, power<=10w< p=””>
Digital output: RS485, RS232, Profibus DP optional;
Analog output: 4-20mA, 0-24mA, 0-20mA, 4-24mA, 0-10V, 0-5V optional;
The measurement range corresponding to the analog quantity can be set through the menu;
Relay output: AC250V，10A； DC30V，10A；
Response time less than 300ms;
Level output: high>=22V, low<=2V, maximum load capacity of 100ma, with short-circuit protection< p=””>
The high and low output of actions can be switched through menu settings;
Response time less than 100ms;
Working temperature: -10 ℃~50 ℃, water-cooled and air-cooled:- 10℃～110℃；
Protection level: IP65；
